8. Examples

Examples showing how to simply benefit from cpforager package with you biologging data.

8.1. GPS

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, GPS


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldwork = "BRA_FDN_2016_09"
colony    = "BRA_FDN_MEI"
file_name = "BRA_FDN_MEI_2016-09-15_SSUL_01_T32840_NA_GPS_IGU120_BR023_LOC.csv"
file_id   = file_name.replace(".csv", "")
file_path = os.path.join(data_dir, fieldwork, file_name)

# get parameters dictionaries
plot_params = parameters.get_plot_params()
params      = parameters.get_params(colony)


# ======================================================= #
# BUILD GPS OBJECT
# ======================================================= #

# load raw data
df = pd.read_csv(file_path, sep=",")

# add a "datetime" column of type datetime64
df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="mixed", dayfirst=False)

# if time is at UTC, convert it to local datetime
if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

# build GPS object (df must have "datetime", "longitude" and "latitude" columns)
gps = GPS(df=df, group=fieldwork, id=file_id, params=params)

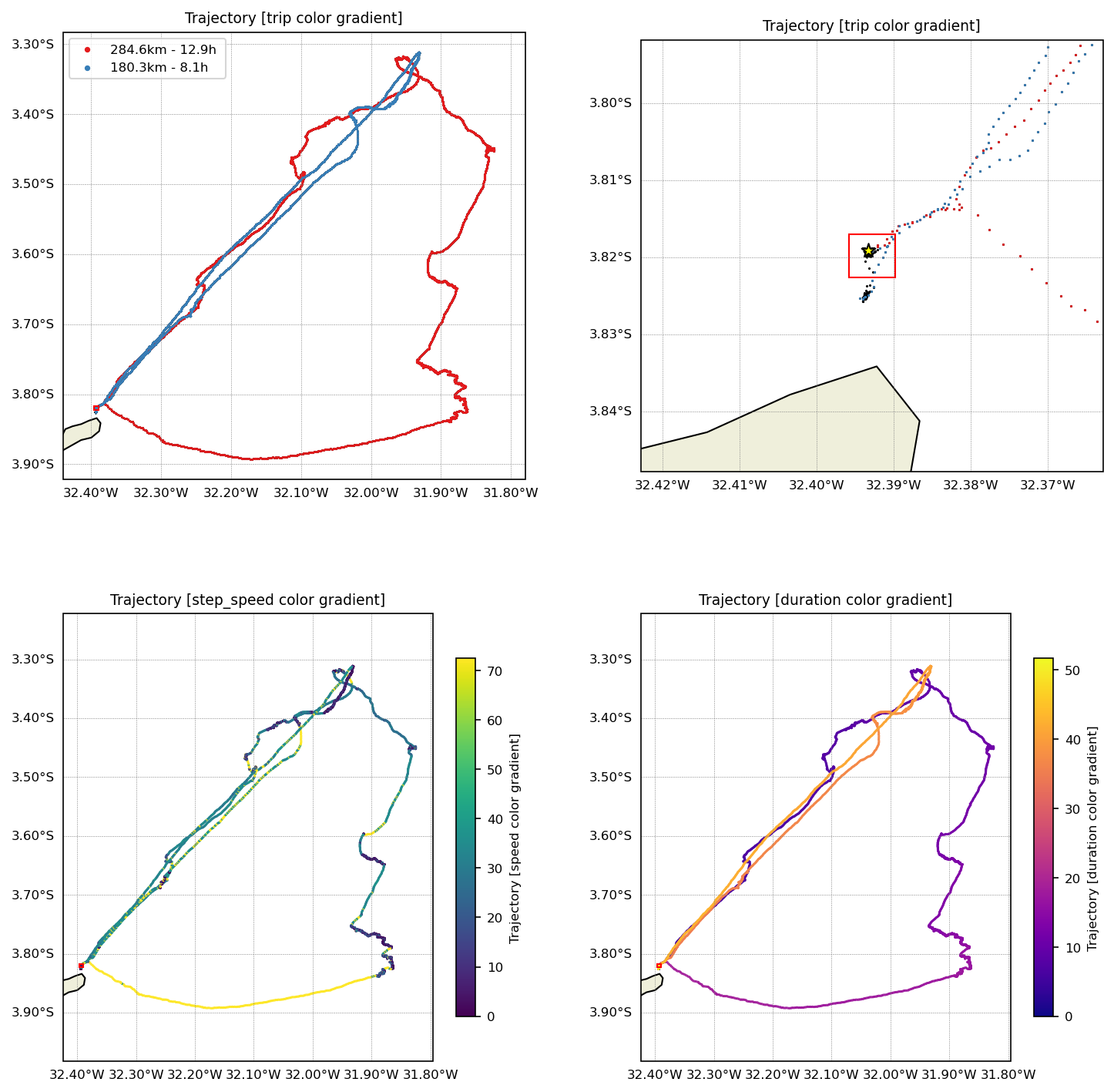

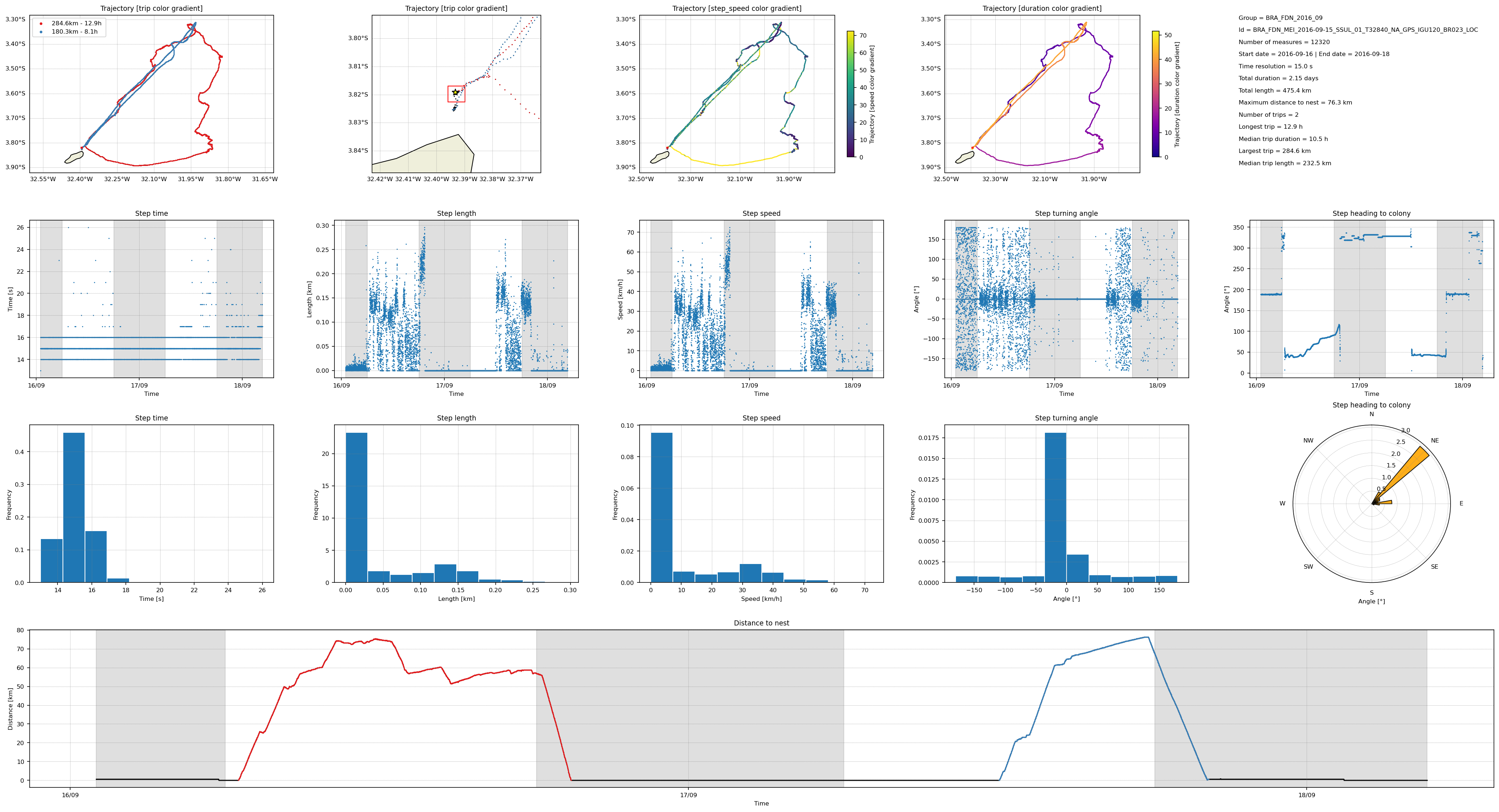

_images/BRA_FDN_MEI_2016-09-15_SSUL_01_T32840_NA_GPS_IGU120_BR023_LOC_diag.png _images/BRA_FDN_MEI_2016-09-15_SSUL_01_T32840_NA_GPS_IGU120_BR023_LOC_map.png

8.2. TDR

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, TDR


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldwork = "BRA_FDN_2022_04"
colony    = "BRA_FDN_MEI"
file_name = "BRA_FDN_MEI_2022-04-26_SDAC_01_U61556_F_TDR_G5_RT10_UTC.csv"
file_id   = file_name.replace(".csv", "")
file_path = os.path.join(data_dir, fieldwork, file_name)

# get parameters dictionaries
plot_params = parameters.get_plot_params()
params      = parameters.get_params(colony)


# ======================================================= #
# BUILD TDR OBJECT
# ======================================================= #

# load raw data
df = pd.read_csv(file_path, sep=",")

# add a "datetime" column of type datetime64
df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="mixed", dayfirst=False)

# if time is at UTC, convert it to local datetime
if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

# build TDR object (df must have "datetime", "pressure" and "temperature" columns)
tdr = TDR(df=df, group=fieldwork, id=file_id, params=params)

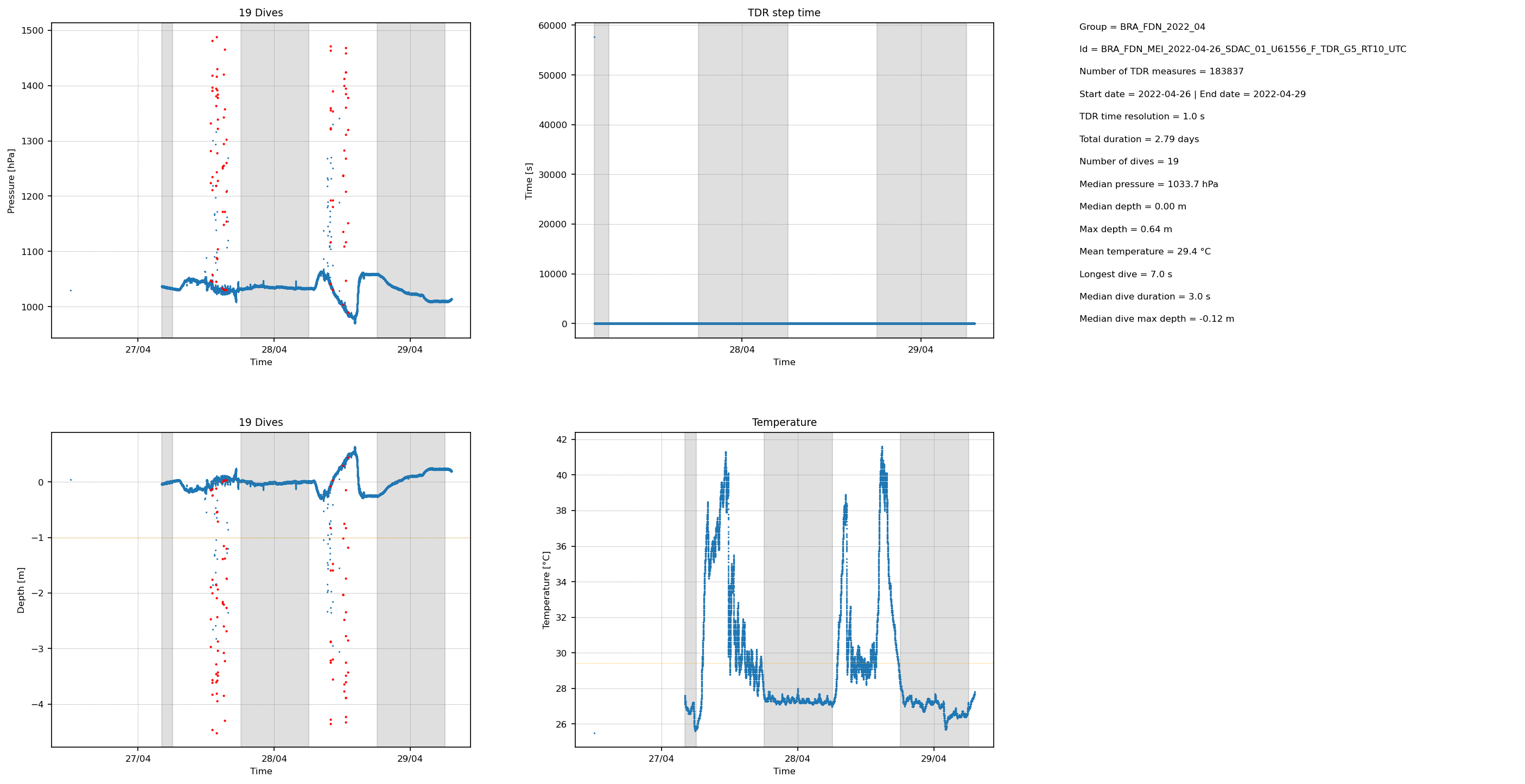

_images/BRA_FDN_MEI_2022-04-26_SDAC_01_U61556_F_TDR_G5_RT10_UTC_diag.png

8.3. AXY

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, AXY


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldwork = "BRA_FDN_2022_04"
colony    = "BRA_FDN_MEI"
file_name = "BRA_FDN_MEI_2022-04-26_SDAC_01_U61556_F_GPS_AXY_RT10_UTC.csv"
file_id   = file_name.replace(".csv", "")
file_path = os.path.join(data_dir, fieldwork, file_name)

# get parameters dictionaries
plot_params = parameters.get_plot_params()
params      = parameters.get_params(colony)


# ======================================================= #
# BUILD AXY OBJECT
# ======================================================= #

# load raw data
df = pd.read_csv(file_path, sep=",")

# add a "datetime" column of type datetime64
df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="%Y-%m-%d %H:%M:%S.%f", dayfirst=False)

# if time is at UTC, convert it to local datetime
if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

# build AXY object (df must have "datetime", "ax", "ay", "az", "longitude", "latitude", "pressure" and "temperature" columns)
axy = AXY(df=df, group=fieldwork, id=file_id, params=params)

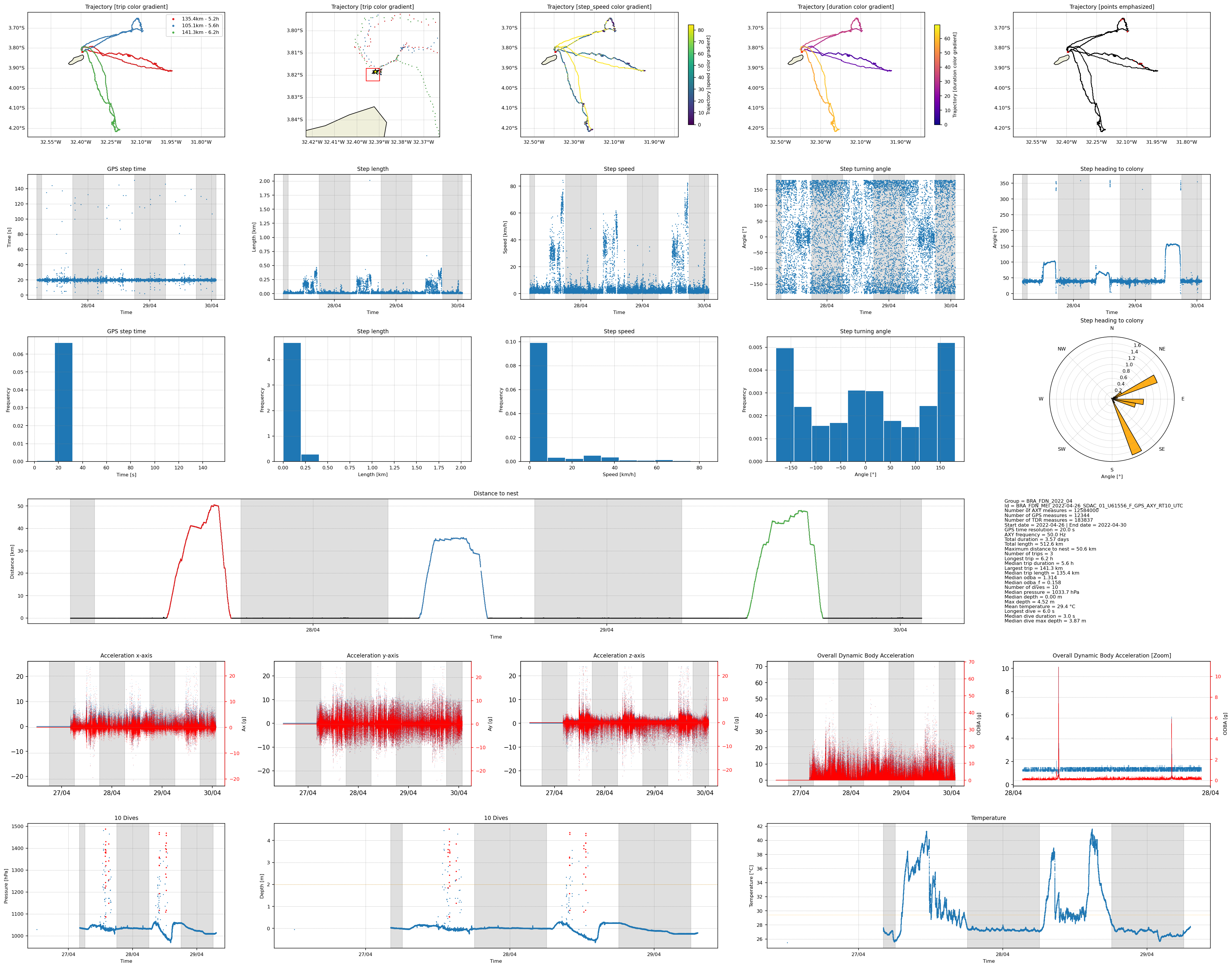

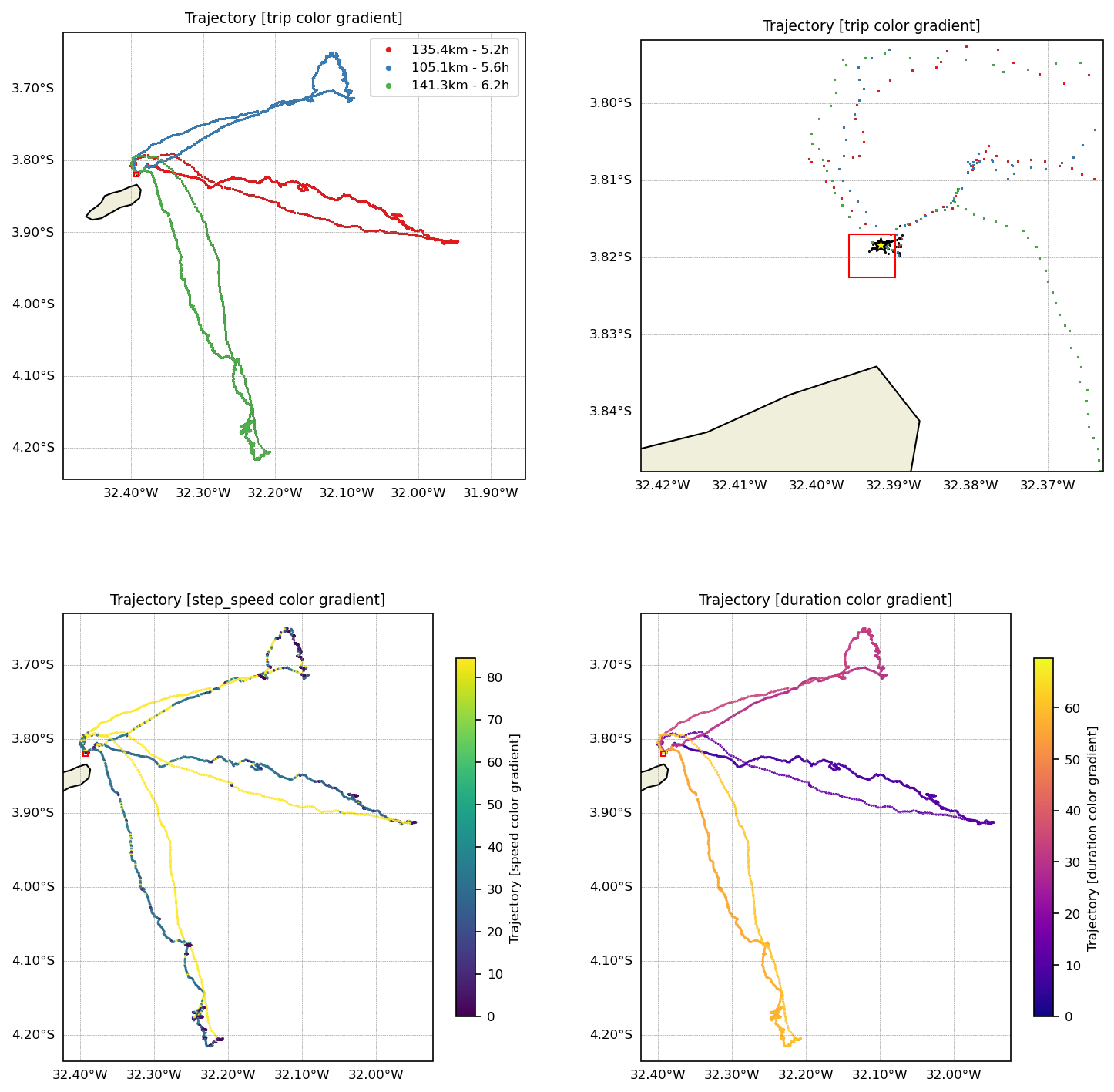

_images/BRA_FDN_MEI_2022-04-26_SDAC_01_U61556_F_GPS_AXY_RT10_UTC_diag.png _images/BRA_FDN_MEI_2022-04-26_SDAC_01_U61556_F_GPS_AXY_RT10_UTC_map.png

8.4. GPS_TDR

8.5. GPS_Collection

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, misc, GPS, GPS_Collection


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldworks = ["PER_PSC_2012_11", "PER_PSC_2013_11", "BRA_FDN_2016_09", "BRA_FDN_2018_09", "BRA_SAN_2022_03"]
colonies = ["PER_PSC_PSC", "PER_PSC_PSC", "BRA_FDN_MEI", "BRA_FDN_MEI", "BRA_SAN_FRA"]

# get parameters dictionaries
plot_params = parameters.get_plot_params()


# ======================================================= #
# BUILD GPS_COLLECTION OBJECT
# ======================================================= #

# loop over fieldworks
gps_collection = []
for (fieldwork, colony) in zip(fieldworks, colonies):

    # determine list of gps files
    files = misc.grep_pattern(os.listdir(os.path.join(data_dir, fieldwork)), "_GPS_IGU")
    n_files = len(files)

    # get structure of parameters according to colony code
    params = parameters.get_params(colony)

    # loop over gps files
    for k in range(n_files):

        # set file infos
        file_name = files[k]
        file_id = file_name.replace(".csv", "")
        file_path = os.path.join(data_dir, fieldwork, file_name)

        # load raw data
        df = pd.read_csv(file_path, sep=",")

        # produce "datetime" column of type datetime64
        df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="mixed", dayfirst=False)

        # if time is at UTC, convert it to local datetime
        if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

        # build GPS object
        gps = GPS(df=df, group=fieldwork, id=file_id, params=params)

        # append gps to the overall collection
        gps_collection.append(gps)

# build GPS_Collection object
gps_collection = GPS_Collection(gps_collection)

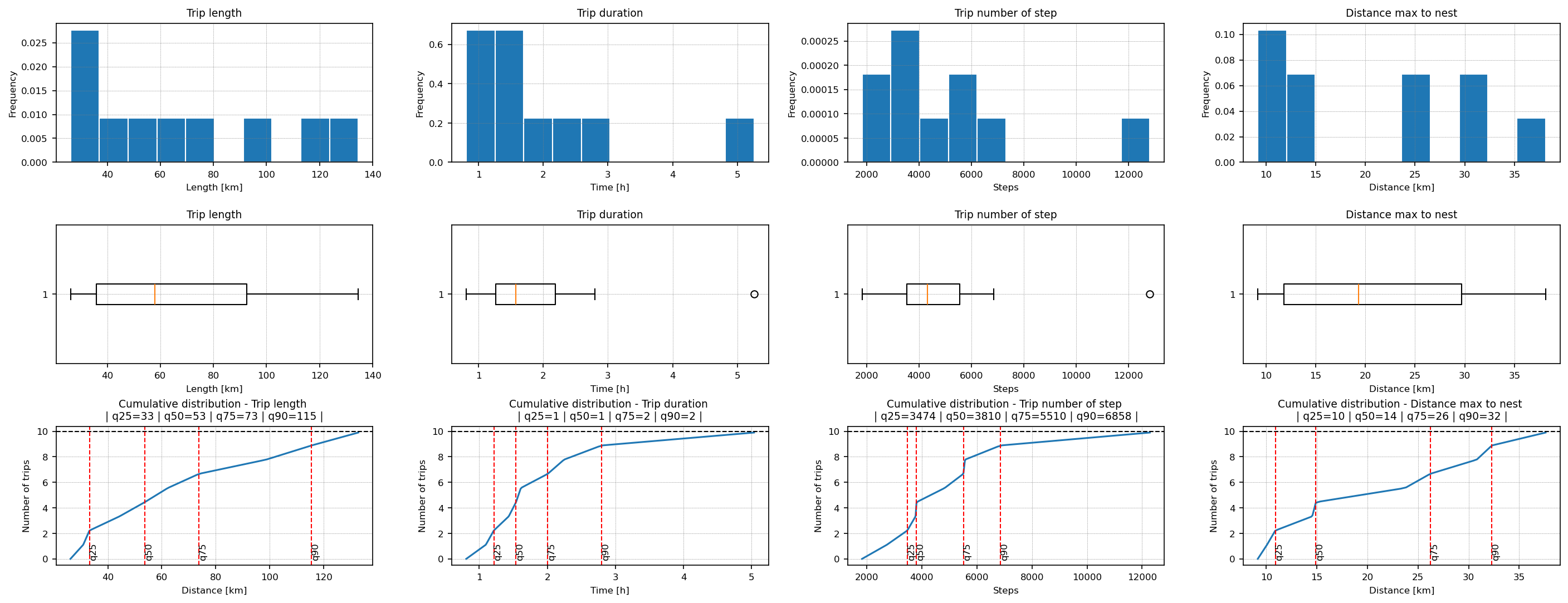

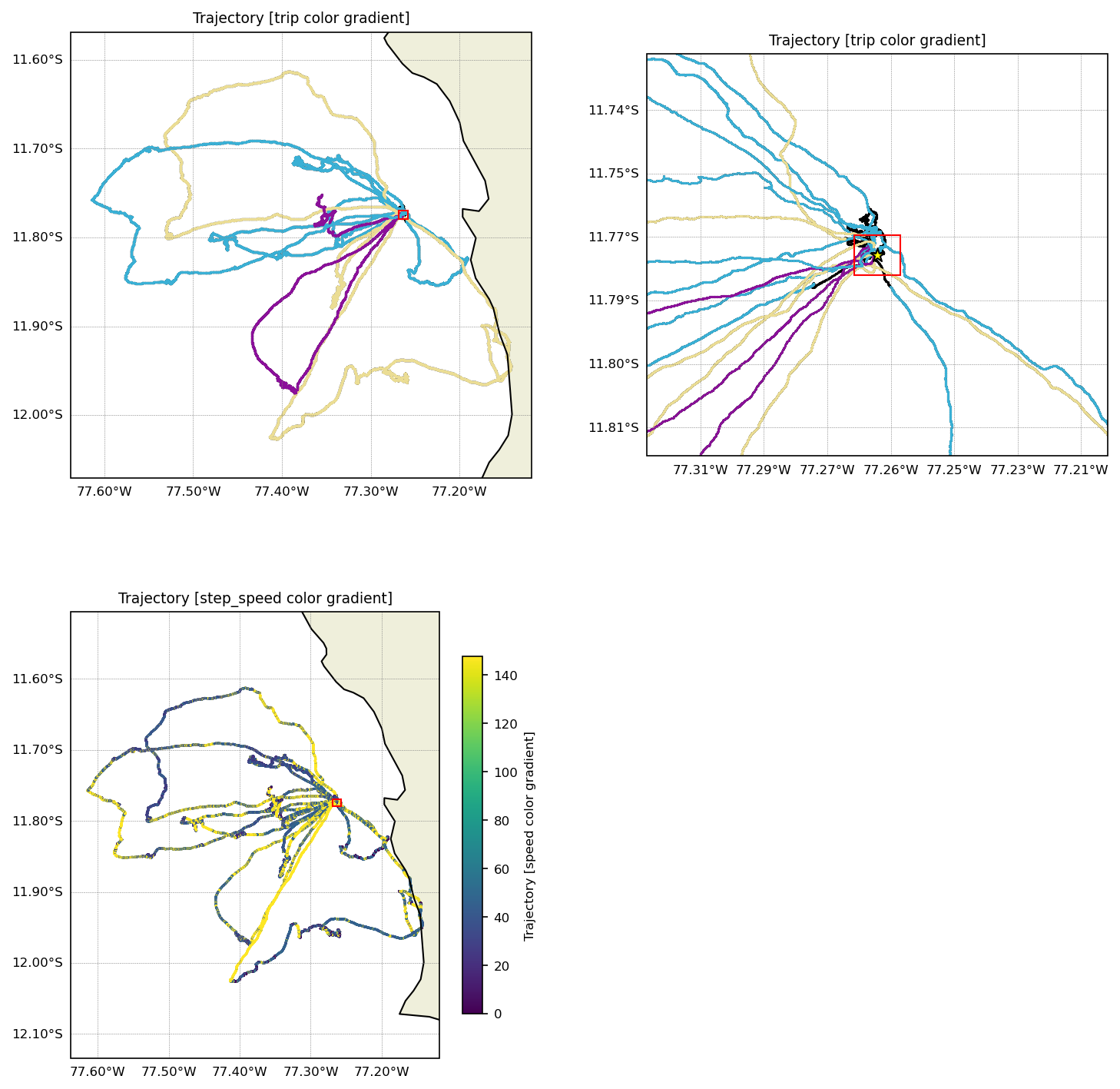

_images/maps_PER_PSC_2012_11.png _images/trip_statistics_PER_PSC_2012_11.png

8.6. TDR_Collection

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, misc, TDR, TDR_Collection


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests", "tdr_collection")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldworks = ["PER_PSC_2008_11", "BRA_FDN_2017_04", "BRA_FDN_2022_04"]
colonies = ["PER_PSC_PSC", "BRA_FDN_MEI", "BRA_FDN_MEI"]

# set parameters dictionaries
plot_params = parameters.get_plot_params()


# ======================================================= #
# TEST TDR_COLLECTION CLASS
# ======================================================= #

# loop over fieldworks
tdr_collection = []
for (fieldwork, colony) in zip(fieldworks, colonies):

    # list of files to process
    files = misc.grep_pattern(os.listdir(os.path.join(data_dir, fieldwork)), "_TDR_")
    n_files = len(files)

    # get structure of parameters
    params = parameters.get_params(colony)

    # loop over files in directory
    for k in range(n_files):

        # set file infos
        file_name = files[k]
        file_id = file_name.replace(".csv", "")
        file_path = os.path.join(data_dir, fieldwork, file_name)

        # load raw data
        df = pd.read_csv(file_path, sep=",")

        # produce "datetime" column of type datetime64
        df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="mixed", dayfirst=False)

        # if time is at UTC, convert it to local datetime
        if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

        # if sensor model is G5, convert dbar to hPa
        if "_TDR_G5_" in file_name: df["pressure"] = 100*df["pressure"]

        # build TDR object
        tdr = TDR(df=df, group=fieldwork, id=file_id, params=params)

        # append tdr to the overall collection
        tdr_collection.append(tdr)

# build TDR_Collection object
tdr_collection = TDR_Collection(tdr_collection)

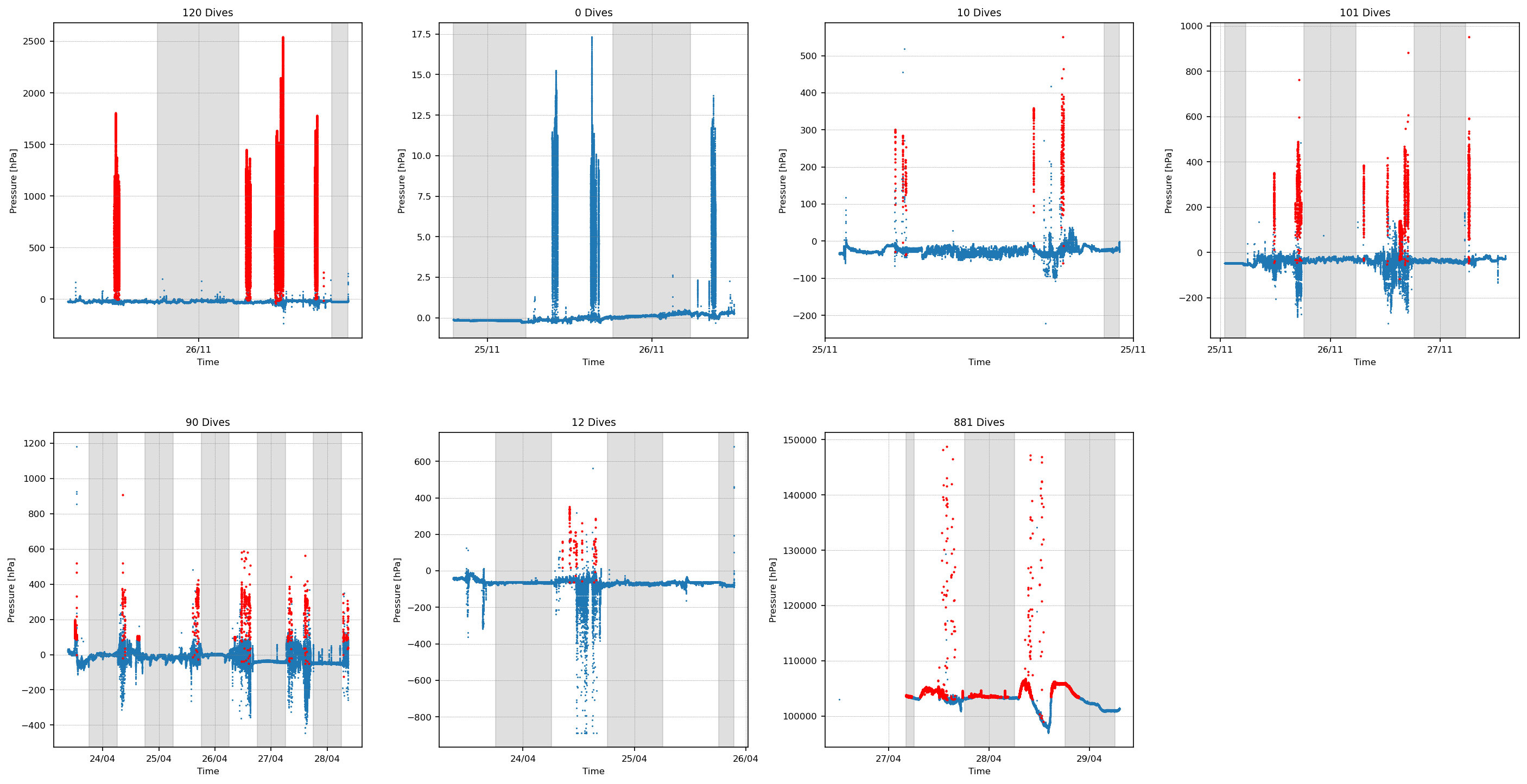

_images/indiv_depth_all.png

8.7. AXY_Collection

# ======================================================= #
# LIBRARIES
# ======================================================= #
import os
import pandas as pd
from cpforager import parameters, utils, misc, AXY, AXY_Collection


# ======================================================= #
# DIRECTORIES
# ======================================================= #
root_dir = os.getcwd()
data_dir = os.path.join(root_dir, "data")
test_dir = os.path.join(root_dir, "tests", "axy_collection")


# ======================================================= #
# PARAMETERS
# ======================================================= #

# set metadata
fieldwork = "BRA_FDN_2022_04"
colony = "BRA_FDN_MEI"

# set parameters dictionaries
plot_params = parameters.get_plot_params()
params = parameters.get_params(colony)


# ======================================================= #
# TEST AXY_COLLECTION CLASS
# ======================================================= #

# list of files to process
files = misc.grep_pattern(os.listdir(os.path.join(data_dir, fieldwork)), "_GPS_AXY_")
n_files = len(files)

# loop over files in directory
axy_collection = []
for k in range(n_files):

    # set file infos
    file_name = files[k]
    file_id = file_name.replace(".csv", "")
    file_path = os.path.join(data_dir, fieldwork, file_name)

    # load raw data
    df = pd.read_csv(file_path, sep=",")

    # produce "datetime" column of type datetime64
    df["datetime"] = pd.to_datetime(df["date"] + " " + df["time"], format="mixed", dayfirst=False)

    # if time is at UTC, convert it to local datetime
    if "_UTC" in file_name: df = utils.convert_utc_to_loc(df, params.get("local_tz"))

    # build AXY object
    axy = AXY(df=df, group=fieldwork, id=file_id, params=params)

    # append axy to the overall collection
    axy_collection.append(axy)

# build AXY_Collection object
axy_collection = AXY_Collection(axy_collection)

8.8. GPS_TDR_Collection
